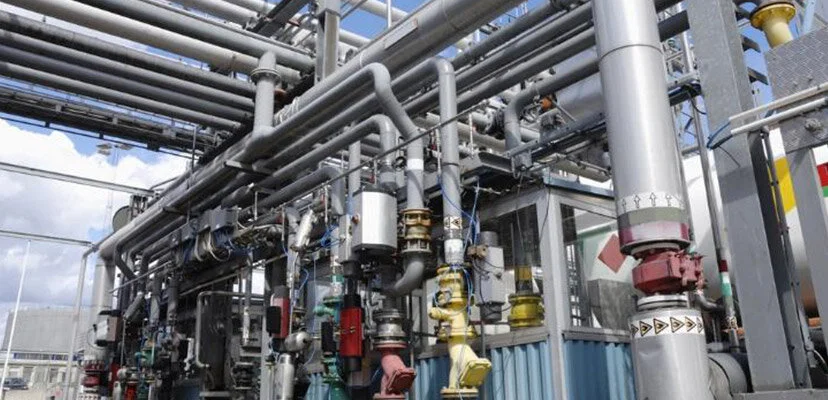

3D laser scanning technology is used to measure, model, and map complex piping structures found in chemical refineries. The process measures individual data points in 3D up to 1M pts/sec, then joins points together into photorealistic Point Clouds.
During initial construction or rearrangement, Falk PLI’s uses precision measurement tools to assist manufacturers of primary components, as well as large bore valve and piping replacements.
Falk PLI uses 3D laser tracking and laser scanning technologies to provide precision as-built verification for complex structures. Laser scanning provides the gross spatial measurements for larger components, whereas laser tracking provides the precise vertical and horizontal measurements for precision alignment.
Our clients interact with measurement data by comparing to CAD drawings and conceptual designs from their desktop, reducing the need for multiple site visits and improving overall project coordination.
